Battery: 24 volt Capacity: 4,500 lbs. Frame Width: 28" overall width Power System: AC Traction Control
-

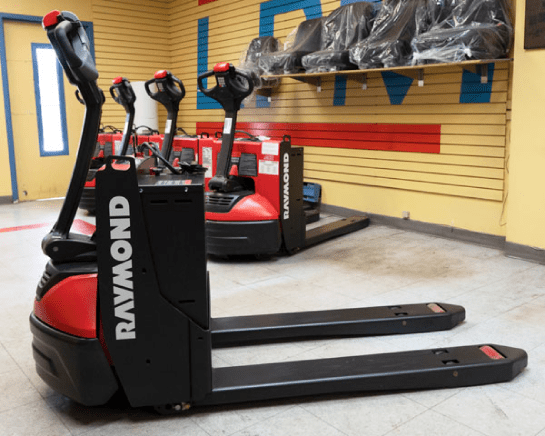

The Raymond 8210 powered pallet jack with AC power provides unparalleled maneuverability to navigate in tight spaces – congested store aisles, busy docks and pinwheeling in the back of trailers. Operators will appreciate the smooth, controlled operation and your business will benefit from the increased strength and energy efficiency the 8210 motorized pallet jack delivers without sacrificing durability.
Features:
- Click2Creep: Provides superior maneuverability at slower controlled speeds.
- Electric Brake Release: Allows for release of the brake during low battery conditions without removing the covers.
- Ergonomic Control Handle: Dual throttle controls are easy to reach and operate.
- IP65 Protection: With sealed contactors, connectors, controllers and cabling, your electronics can take regular wash downs and still reliably perform.
- Debris Diversion: Rubber skirting directs light debris away from the drive tire.
- Lift & Go: Lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear.
Built to Perform
-
Ductile Iron
Ductile iron in the frame supports the drive motor with almost twice the yield strength of steel. Ductile iron bell cranks and wheel forks provide a more durable undercarriage construction. -
High Strength Low Alloy (HSLA) Bumper
HSLA is commonly used in automotive truck frames, and tests at 3 times greater strength and durability over competitive bumpers - but weighs considerably less - to help maintain the efficiency of the 8210 pallet truck. -
Lift and Go Programmability
A Raymond exclusive, this technology lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear over dock plates, lift gates and curbs.
-
Fully Programmable
Programmable performance parameters let managers customize truck performance to fit the work environment and operator needs. -
Handle
Raymond's ergonomically contoured handle features easy‐to‐reach controls that are intuitive to learn and operate. -
Storage Tote and Accessory Bar
The optional storage tray and accessory bar put the operators tools at their fingertips. The powered accessory bar interfaces with RAM-mounted accessories for additional conveniences such as a work light and fan.
-
Poly Carbonate Covers
Light weight yet durable, our snap fit poly covers provide the durability you need, yet secure without screws for quick and easy service access. -
Removable Bumper
The high strength low alloy bumper is lightweight yet resilient, and removes easily for convenient service access. -
Stainless Pins
Come standard in the undercarriage to prevent corrosion and simplify service.
-
AC Traction Control
Provides seamless speed transitions, allowing the operator the control needed to smoothly move the truck one inch at a time. -
Click2Creep
Raymond's exclusive Click2Creep feature provides unmatched maneuverability. Click2Creep automatically reduces travel speed and allows the truck to be operated with the handle tucked tightly to the tractor for pinwheeling in trailers, and providing superior maneuverability at a slower, controlled speed. -
Static Torque Control
With static torque control, the 8210 walkie pallet truck separates speed from torque, giving operators the power they need to maneuver the 8210 walkie pallet truck up and over lift gates and curbs with smooth, controlled operation at all speeds.
-
Anti-Roll Braking
Prevents the unit from rolling when parked on uneven surfaces — ensuring the truck’s movement is controlled until the operator requests travel. -
Auto Power Off
Our exclusive Auto Power Off feature monitors truck usage and powers the unit down when idle, preserving battery capacity to keep you running for a full day’s work. -
Electric Brake Release
This feature releases the electric brake during low battery conditions without having to remove the truck covers. Our exclusive design retains braking ability when the handle is in the brake position, increasing operator control.
Applications
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.
Dock and Delivery
The Raymond 8210 walkie pallet truck is ideal for use on-board delivery trucks. This compact AC-powered walkie is exceptionally maneuverable and allows pin wheeling in trailers for maximum cube.
Processing Applications
Raymond offers Extreme Environment Corrosion Protection with hot-dip galvanization on the 8210 electric walkie pallet truck to protect trucks used in wet, caustic and briny applications from moisture and to flush contaminants.
UL EE Applications
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
