Transtacker Swing-Reach Heavy-Duty Turret Truck
-
-
Built-in DC Charger
Operates on AC power in the aisle, which recharges the DC motor for power required outside the aisle.Built-in DC Charger -

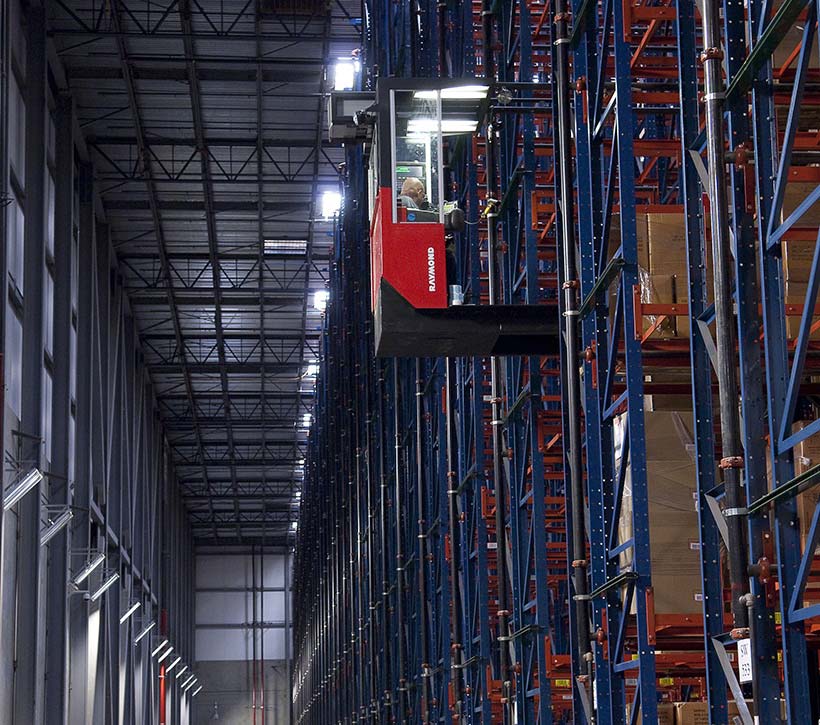

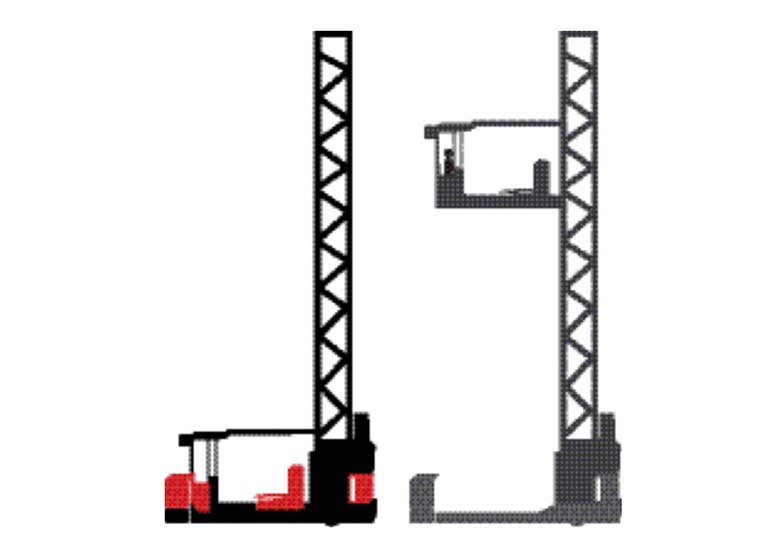

Dual Purpose Design
Combines high-density unit load handling with operator-up order picking versatility.Dual Purpose Design -

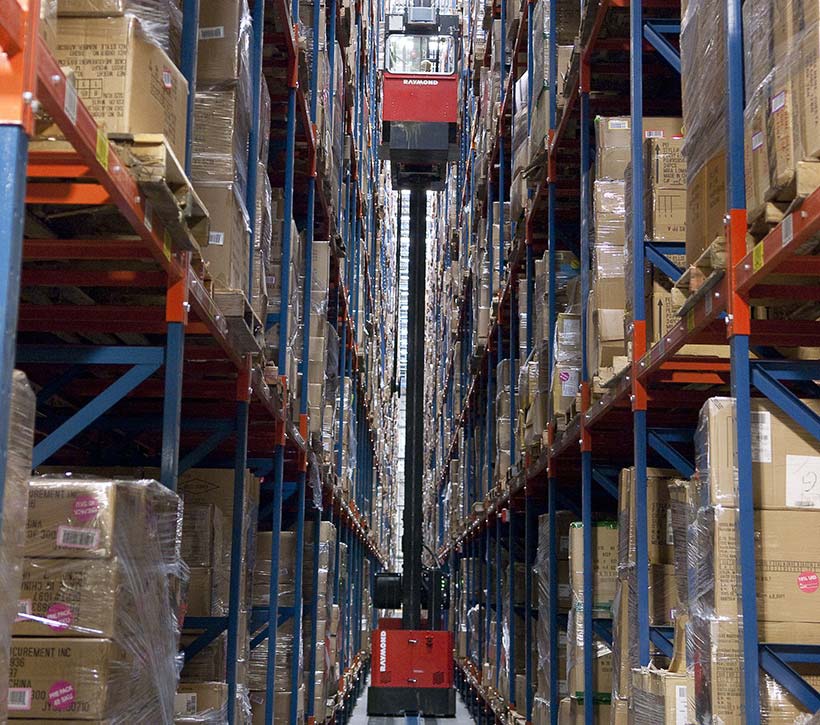

Regenerative Braking
Reduces motor heat and extends motor brush life, requiring less maintenance and lower overall costs.Regenerative Braking -

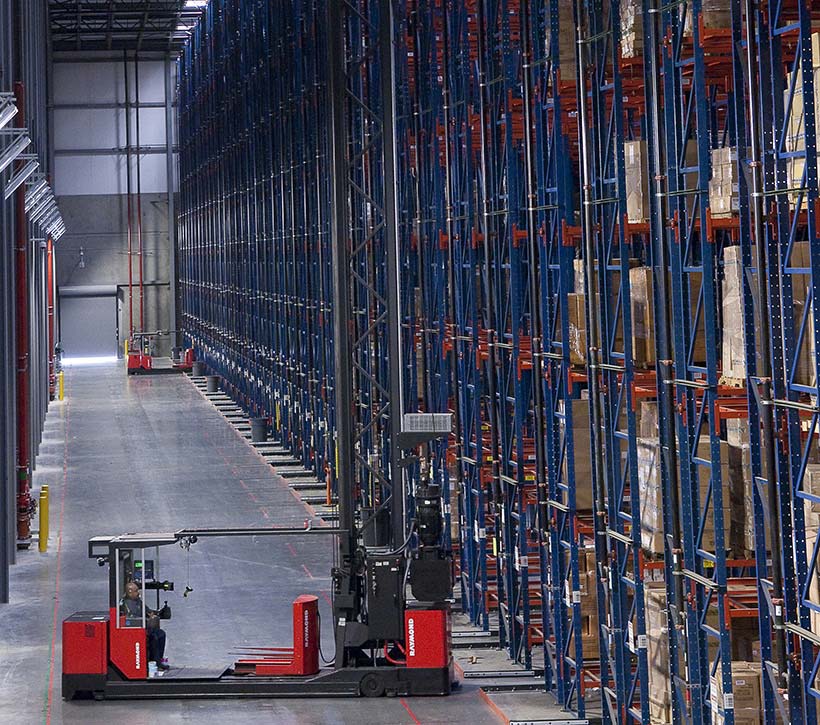

Smooth Speed Control
Transistorized speed control provides smooth, variable control both inside and outside of the aisle.Smooth Speed Control -
Comfortable Compartment
Designed with comfort features to enhance operator performance and productivity.Comfortable Compartment
Ultimate Storage Density
Maximize valuable space with narrower aisles and higher heights with the Raymond Transtacker. This heavy-duty, high density swing-reach turret truck combines case picking and unit load handling in aisles as narrow as 54 inches at heights up to 59 feet, for the ultimate very narrow aisle warehouse storage solution.- Battery: 36 volt
- Capacity: 4,000 lbs
- Elevated Height: 700" maximum
- Power: AC/DC Power allows 24/7/365 operation
- Aisle Width: 54" minimum
Built to Perform
-

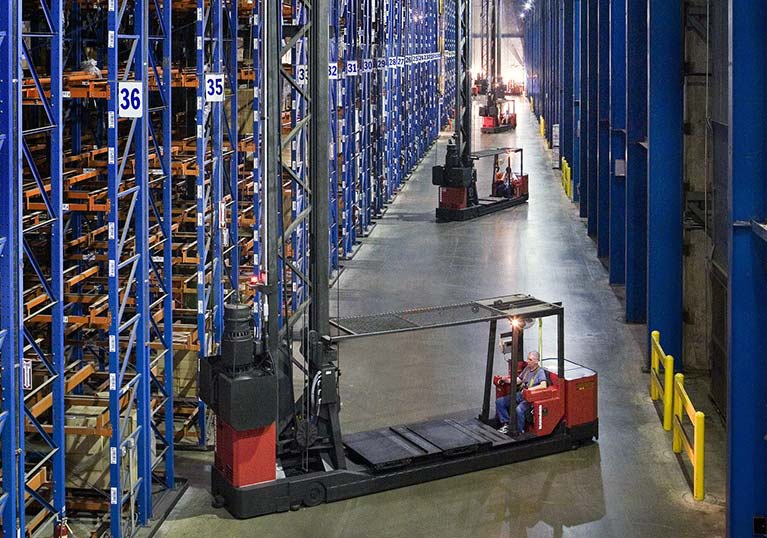

24/7/365 Operation
Dual AC/DC power supply with AC power in the aisle guided by floor and ceiling mounted guide tracks while automatically recharging the DC battery for operation outside the storage aisle, allowing for continuous operation. -
Regenerative Braking
Provides electromotive braking reducing motor heat and extending motor brush life.
-
Ultimate Storage Density
The heavy duty Transtacker combines case picking with unit load handling in a single truck, and with its capacity of up to 4,000 pounds, elevated height of 59 feet, and the ability to operate in aisles as narrow as 54 inches, it is ideal for high density applications with a need for maximum selectivity. -
Various Operating Positions
From the platform allow effortless control whether standing or sitting facing forks first. -
AC/DC Power Supply
Provides fast and easy aisle-changing capabilities with no mechanical aisle-changing devices.
-

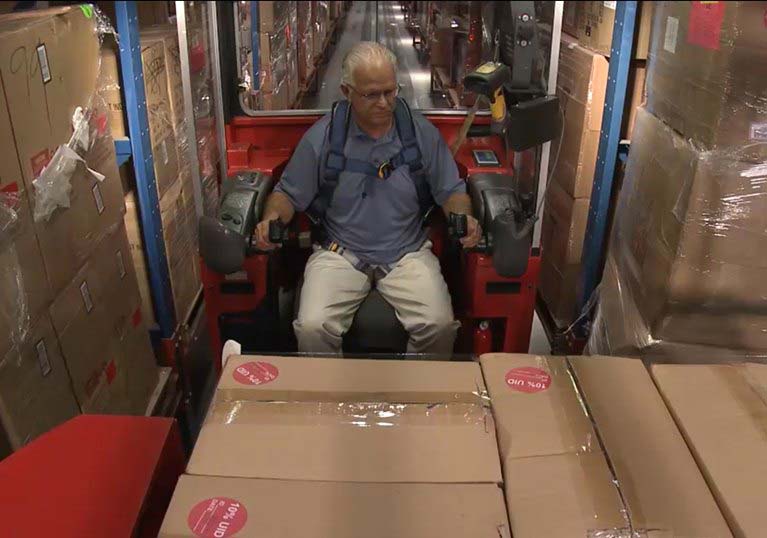

Fine Positioning Controls
Fine positioning controls for the lift, travel and load handling functions provides better load control for operator efficiency, while the pallet centering feature aligns pallet in the proper position to maintain constant travel clearance. -

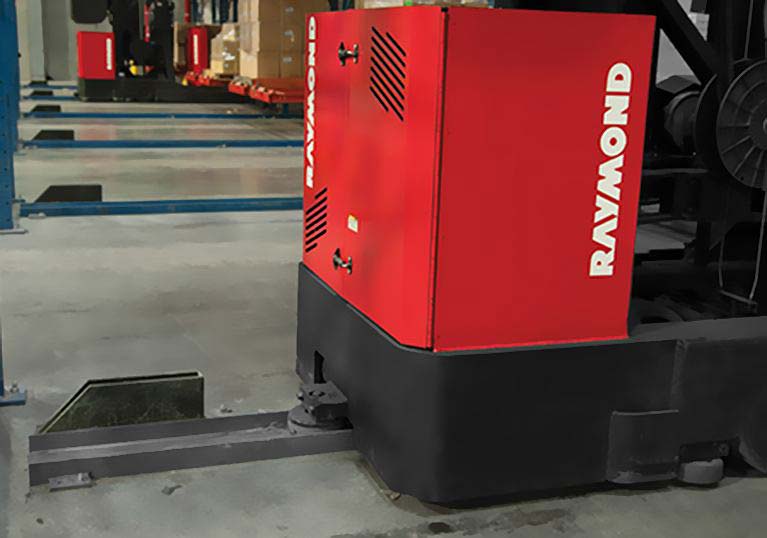

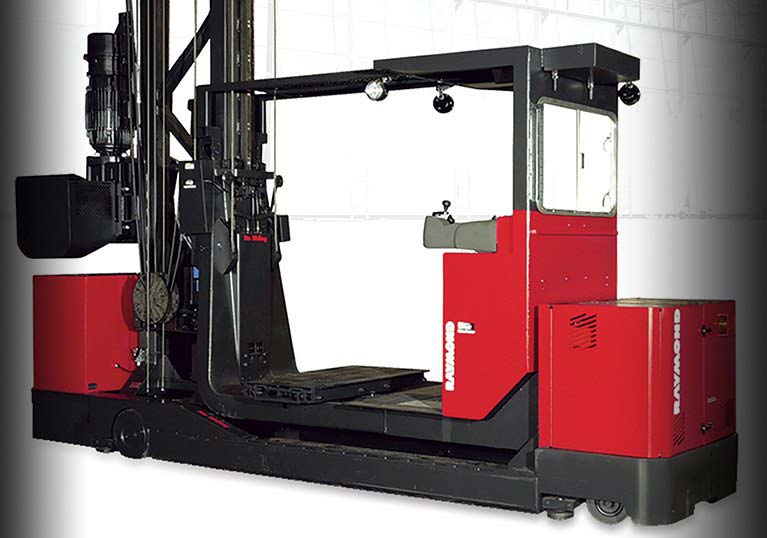

Unique Wheel Arrangement
The Transtacker's center wheels work in the aisle for mast support while outside wheels provide support when changing aisles to provide optimum wheel loading while working in the aisle.
-
Dynamic Hoist Braking
Slows hoist motion to a smooth stop prior to engaging the mechanical brake, minimizing hoist brake wear and maximizing operator comfort. -

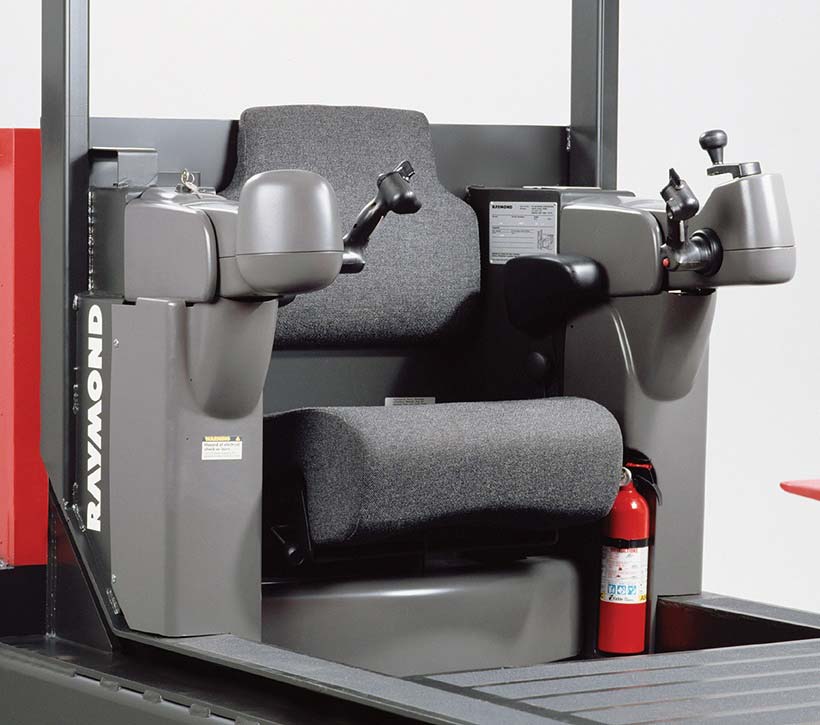

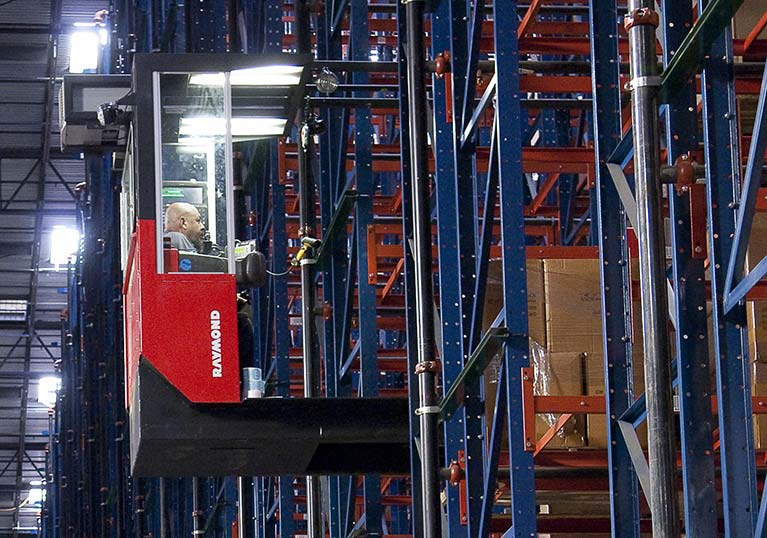

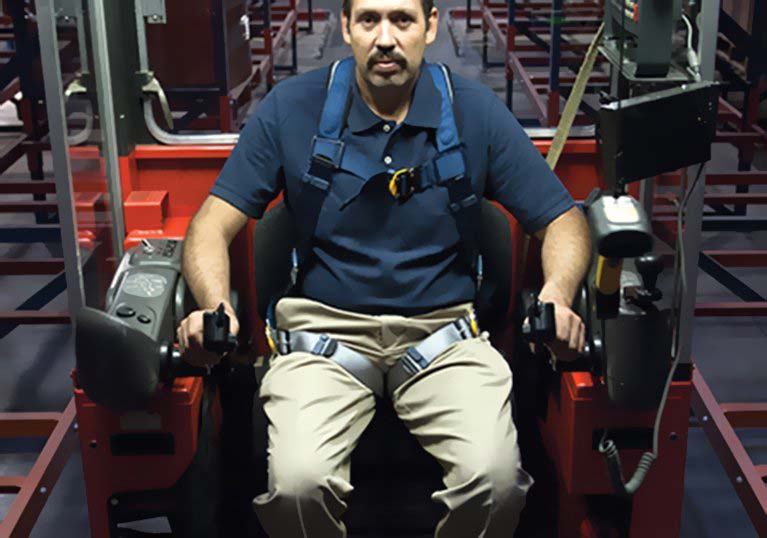

Operator's Compartment
Ergonomically designed with adjustable armrests and controls for convenient operation from seated and standing positions. -

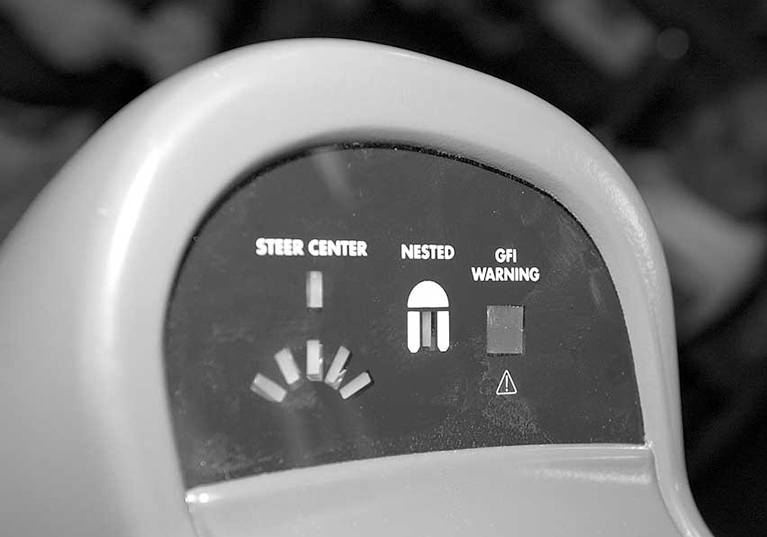

Intuitive Controls
The handles and operator display allow for easy and efficient control of critical truck functions.
-
SRT Electric Lift Design
No hydraulic components and longer service life. It's like getting two trucks in one. -

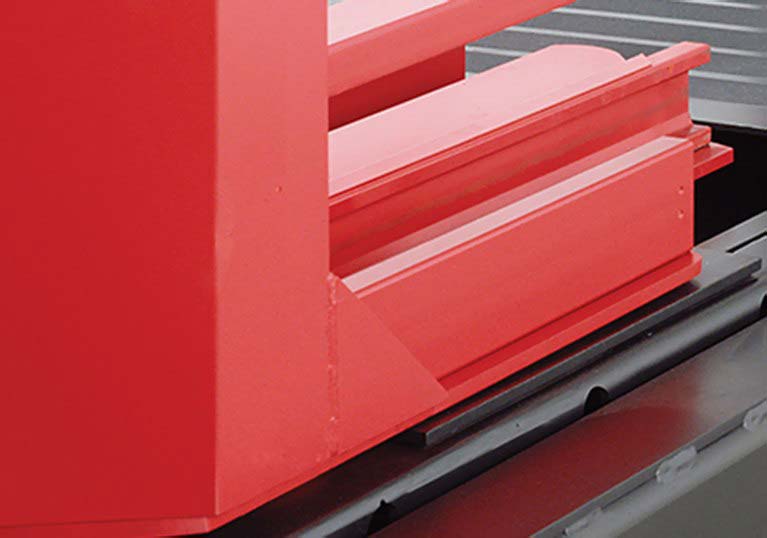

Reduced Damage
Steel bumpers minimize the chance of damage to the truck from debris. -
Automatic Steer Lock
In guided aisles, the automatic steer lock feature prevents damage to the drive unit from incorrect alignment.
-

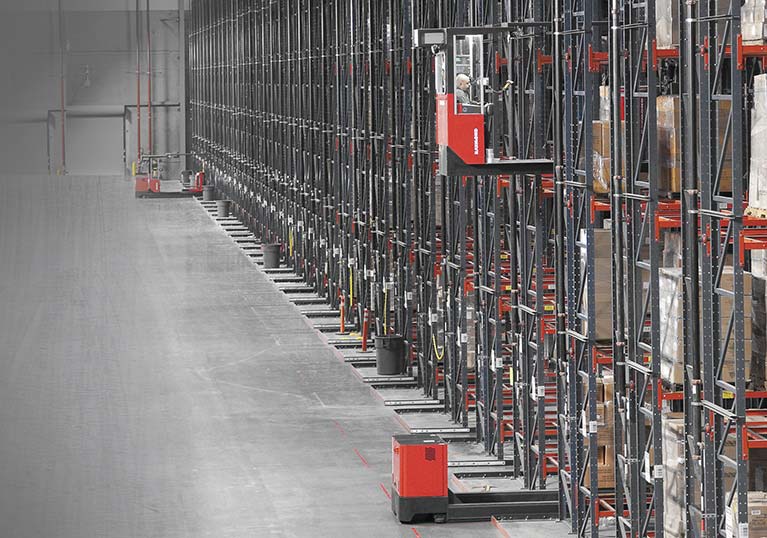

Raymond Transtacker Very Narrow Aisle Truck
The Raymond Transtacker can deliver incredible reach and power in aisles as narrow as 54 inches. This unique turret truck operates on AC power in the aisle, and is guided by a floor to ceiling mounted guide rack. Outside the aisle, the TRT Transtacker operates as a DC battery powered vehicle. While the Transtacker operates on AC power, the DC battery automatically recharges. -
Raymond's intelliguide Wire Guidance System
Raymond's intelliguide™ is a proven, reliable system for customers who are looking to maintain or improve profitability in their warehouse operations through better management of space, equipment, and people. Raymond's patented intelliguide system provides no-tune wire guidance with excellent tracking and stability for very narrow aisle forklifts.
