    Radioshuttle

    The most efficient, semi-automated pallet racking system

Double Your Pallet Storage Capacity & Move Them at Twice the Speed

  • Maximize Your Space

    Maintain maximum selectivity and increase your operational efficiency with the Radioshuttle pallet racking system. Radioshuttle is a semi-automated storage and retrieval system that allows for a maximum use of warehouse space. Easily managed with a remote control, the Radioshuttle pallet shuttle is loaded into storage loads and executes orders to load or unload pallets into a lane. The lanes are fed pallets by lift trucks such as reach trucks or sit down forklifts.
  • radioshuttle

    How it Works

    The Radioshuttle is battery powered unit that efficiently detects, lifts and moves pallets into, through and out of the system. Each shuttle is equipped with features like warning lights, audio signals, bright and clear display systems, etc. This is the result of 30 years of evolution and continuous improvement.


    The Radioshuttle is loaded into storage loads and, taking commands from the remote control, executes orders to load or unload pallets into a lane. The lanes are fed pallets by lift trucks such as reach trucks or counterbalanced forklifts.

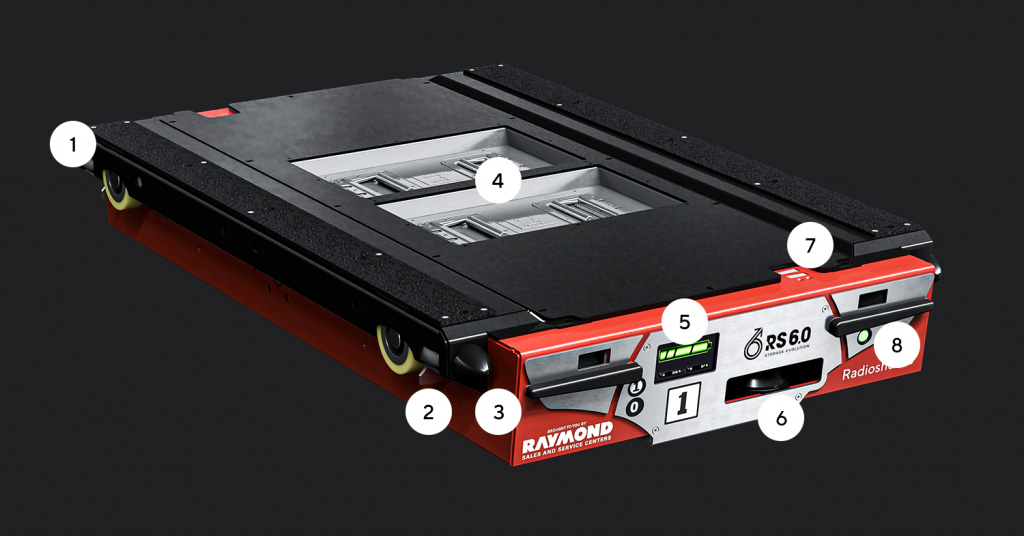

    • Radioshuttle top side - components

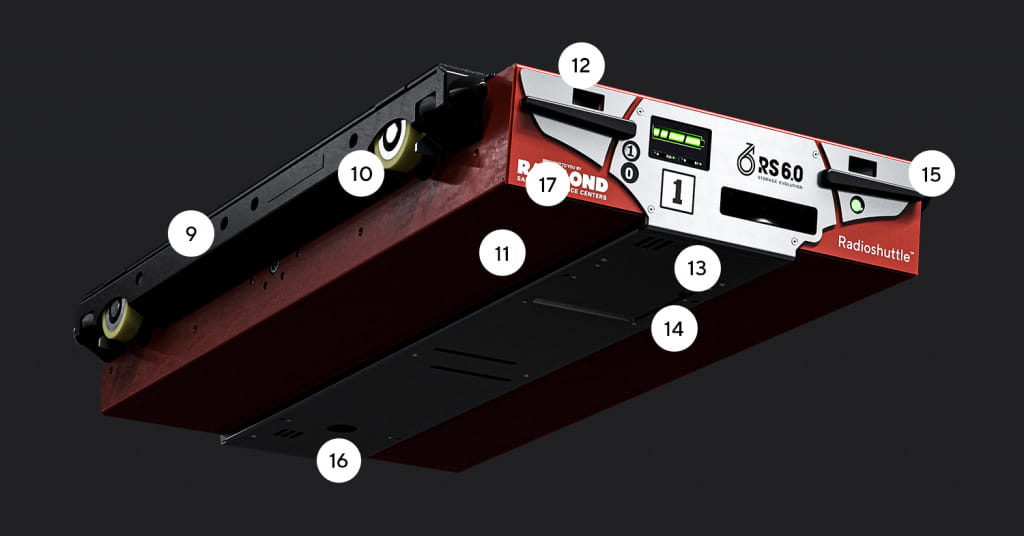

    • Radioshuttle bottom side - components

  • The Shuttle

    1. Side guidance
    2. Sweeper arm
    3. Bumper
    4. Battery compartment
    5. Communication information display
    6. Safety scanner
    7. Upward sensor
    8. Status lamp
    9. Side sensor
    10. Wheel
    11. Grip surface
    12. Forward sensor
    13. Directional travel lights
    14. Led light beam
    15. Fork bumper
    16. RFID reader
    17. Inclination sensor

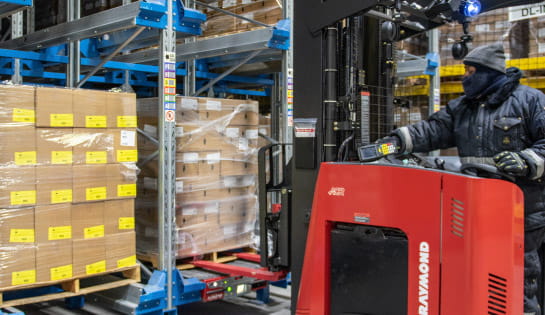

  • Radioshuttle cold storage application

    Applications

    • Automation ready
      • Radioshuttle is prepared to handle fully-automated warehouses with driverless trucks and cranes, allowing your staff to focus on other things.
    • Operate at any temperature
      • Works in all temperature zones, from -22° to 104° Fahrenheit
    • Applications with multiple pallets of storage for each SKU, for example:
      • High volume SKU's
      • The first point of storage after manufacturing
      • Work in process
      • Product produced and held for quality testing
      • Sites that have a reasonably high turnover - greater than 5 times per year
      • Facilities running out of space
      • Storage layouts where deep lane storage is the best option

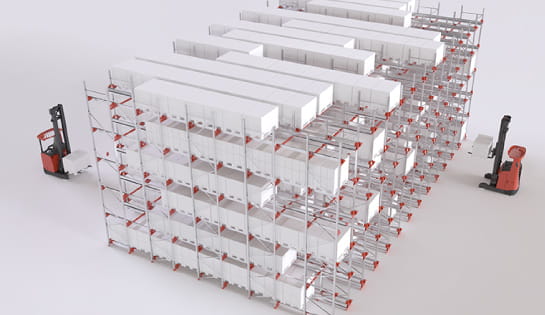

  • Radioshuttle FIFO

    Features & Benefits

    • Safety first
      • The Pedestrian Protection Scanner scans for anything that may come into contact with the shuttle and load. The shuttle will slow and stop at a safe distance if an obstacle is detected
      • Light & sound warning system
    • Store more pallets in a lane
      • Store more pallets in a given footprint
      • With fewer aisles, there is less travel required resulting in more pallets moved per operator
    • Every level can be a unique SKU
      • Racks have higher utilization
    • Pallets move through rack independent of a lift truck
      • Increase pallet throughput
      • Reduced product damage
    • Cost-effective automation

Components

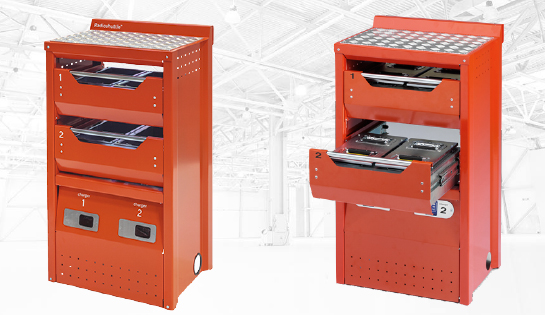

Radioshuttle Charging Station

Charging Station

The Charging Station helps you to extend battery lifetime and keep an ergonomic and safe environment. Re-charge the batteries by placing both battery cassettes into the pull-out drawer, which automatically connects the batteries to power.
  • Anti-slip top surface
  • Displays shows the status of the batteries
  • Space for 2 sets of batteries (4 individual battery cassettes)

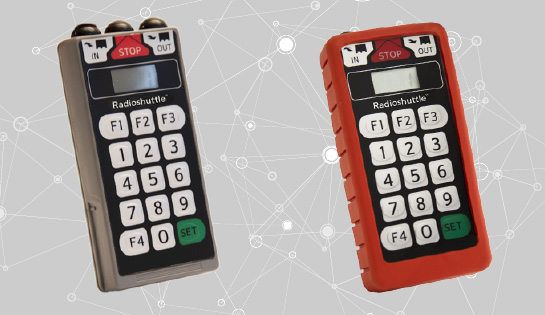

Radioshuttle Remote Control

Remote Control

The Remote Control is used to give commands to the Radioshuttle using one-touch features to load, unload and shuffle pallets.


It is designed to work in ambient and, of course, frozen temperatures… and will even work when the operator wears thick insulated gloves. Usually one remote control is paired with one Radioshuttle unit.

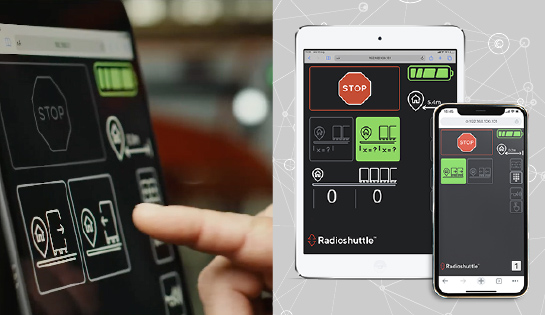

Radioshuttle Connect

Radioshuttle Connect

Radioshuttle Connect acts as a merger between the Remote Control and the information display of the shuttle.

  • Two-way communication between the shuttle and the device of your choice (tablet, smartphone, etc)
  • Sends all the same commands as the Remote Control
  • Receives real-time information

Watch the video here.

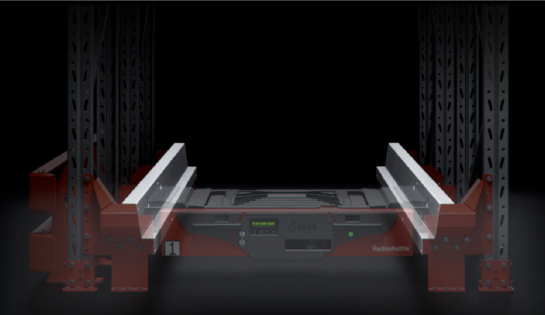

Radioshuttle Rail

Radioshuttle Rail

The patented Radioshuttle rail allows the operator to load the shuttle into the structure quickly and easily.
  • Wide top opening
  • Guides pallets into first position, both vertically and horizontally
  • Combination of high strength rail and the shuttle's poly wheels results in a structure that lasts for decades
  • Options to protect the structure during loading or unloading product at ground level
